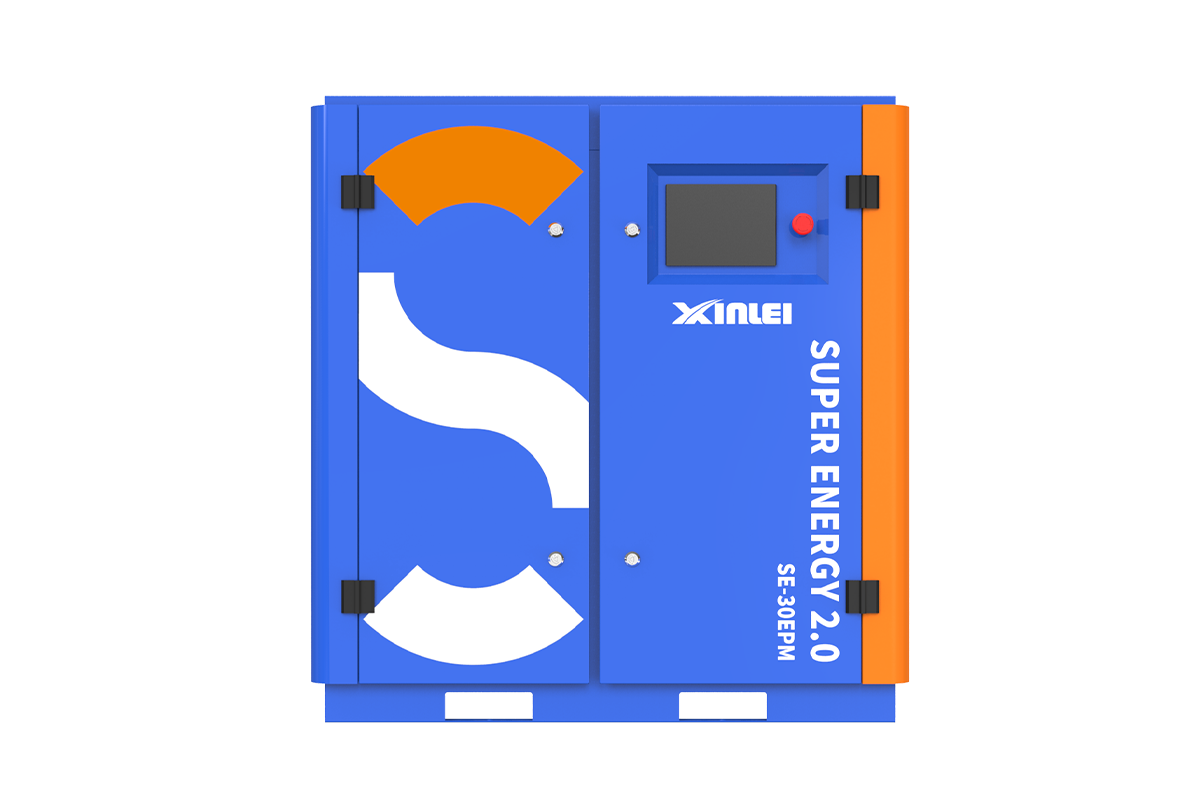

SCREW AIR COMPRESSOR WITH VARIABLE FREQUENCY DRIVE (VSD) MOTOR
Code: EPM Series using a VSD motor, higher efficiency, 4.0 technology

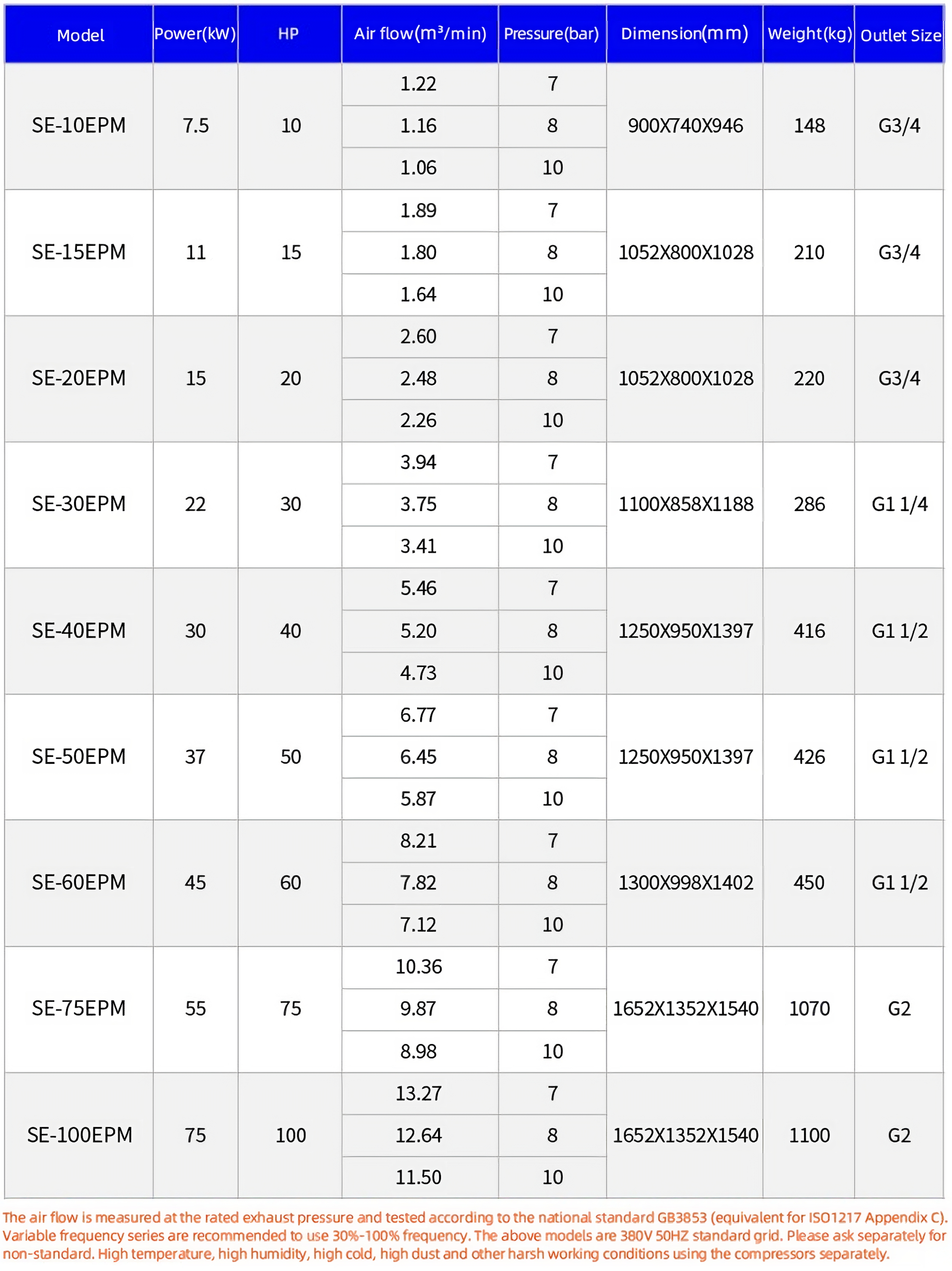

Model: SE-10EPM ~ SE-100EPM
Power: 7.5 KW ~ 75 KW
Flow rate: 1.06 m³/min ~ 13.27 m³/min
Pressure: 7 ~ 10 bar
Larger PM (Permanent Magnet) motor combined with VSD
Oil-cooled motor
IP65 protection grade, resistant to high temperatures
Motor efficiency of IE3+
Both the main motor and fan motor use variable frequency drive control
Xinlei designs and develops products for HIGH ENERGY USE EFFICIENCY.
Uses a permanent magnet motor (synchronous PM motor compared to the commonly used asynchronous 3-phase motors). This motor: DOES NOT SLIP, REDUCES ENERGY LOSS DUE TO HEAT, and has GOOD TORQUE LOADING CHARACTERISTICS.
Motor and air-end are synchronously designed => reduces couplings, rotating parts => less energy consumption for internal load of the Air Compressor.
Integrates hardware and software platforms ready for IoT monitoring systems (for 4.0 factories). Provides apps for monitoring and offers maintenance and operation consultancy.
Technical parameters are labeled at Grade 1 (according to the Mandatory Energy Efficiency Labels standard of China). This means that within the same product range, China stipulates the energy consumption/useful power (here, it’s the air production) per level label. Xinlei machines are labeled with the highest efficiency.
